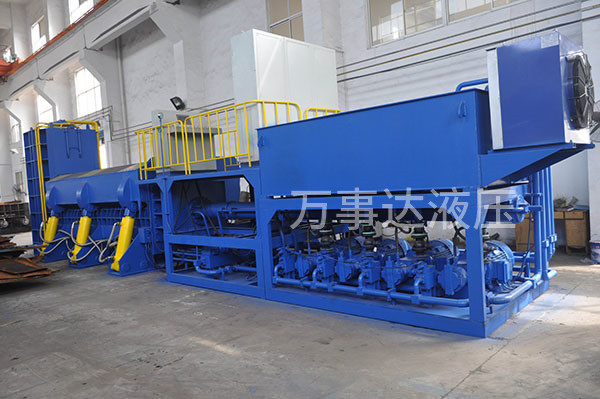

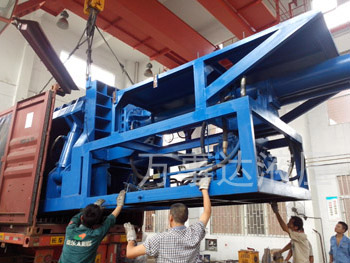

WSD系列廢鋼液壓門式打包剪切機
|
WSD系列廢鋼液壓門式打包剪切機用途： |
技術參數：
| 序號 | 型號 | 剪切力 | 刀片長度 | 剪切次數 | 料箱長度 | 包塊尺寸 | 主電機功率 |
|---|---|---|---|---|---|---|---|
| 1 | WSD-500 | 500t | 800mm | 4-6 1/min | 4800mm | 650×550mm | 2×90kW |
| 2 | WSD-630 | 630t | 800mm | 4-6 1/min | 6000mm | 720×650mm | 3×90kW |
| 3 | WSD-800 | 800t | 800mm | 4-6 1/min | 6000mm | 720×650mm | 4×90kW |
| 4 | WSD-1000 | 1000t | 1000mm | 3-5 1/min | 6000mm | 840×720mm | 5×90kW |
| 5 | WSD-1250 | 1250t | 1000mm | 3-5 1/min | 8000mm | 840×720mm | 6×90kW |
